40*16mm Plaster LED Alu Profile With PC Cover For Led Strip Lighting Mounted On 12mm Drywall
Plaster LED Profile, DryWall LED Profile
1. FEATURES AND APPLICATIONS:
* Widely used for ceilings, walls, etc.
* Suitable for holding and protecting our LED light bars.
* They can be flush mounted into coves or furniture and prevent unwanted secondary refraction from reflective surfaces.
* Acts as a heat sink for them, which in turn increases the life of the LEDs, as well as slowing down any brightness drop over time.

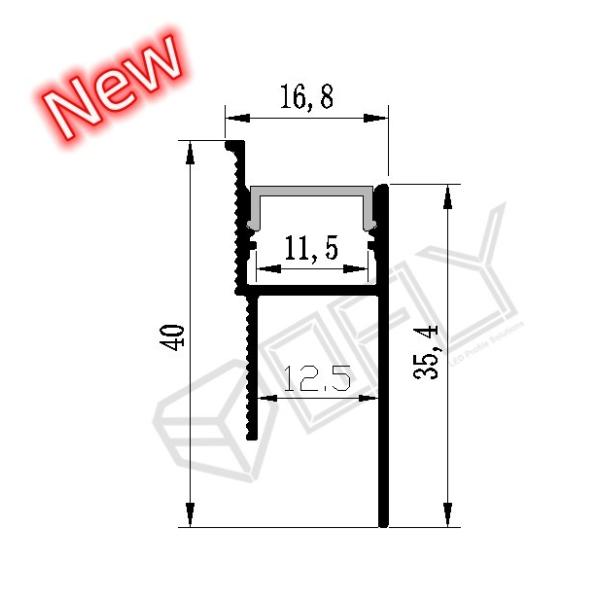

2. SPECIFICATION:
| Item NO. | YD-2222 |
| Size | 40*16mm |
| Length | 1m, 2m, 3m, 4m |
| Customized Length | Available |
| PCB Width Inside | ≤12.5mm |
| PC Cover | Milky/Clear/Opal/Semi-clear |
| Finished | Anodized |
| Material | 6063 T5 aluminum alloy |
| End Caps | 2 End caps, one with wire hole, one without |
| Brackets | |
| Installation | Embedded |
| Lead Time | 5-7 days |
| Package | 8mm Thick Carton Packaging |
Hot Sales
FAQ
Q1: What is the length in stock ?
A1: 2/3meters
Q2: Can we have different length ?
A2: Yes, we have in house cutting facilities to prepare the length in any quantity
Q3: What is the max length of the LED profile ?
A3: Max in 3meters for air shipment, 5meters for sea shipment
Q4: Can I join them together to make one continuous length?
A4: Simply align them together to make no gap between lengths - do not use end caps and you will be able to make nice one continuous length. (You can also use a mounting clip at the joints to keep an even line)
